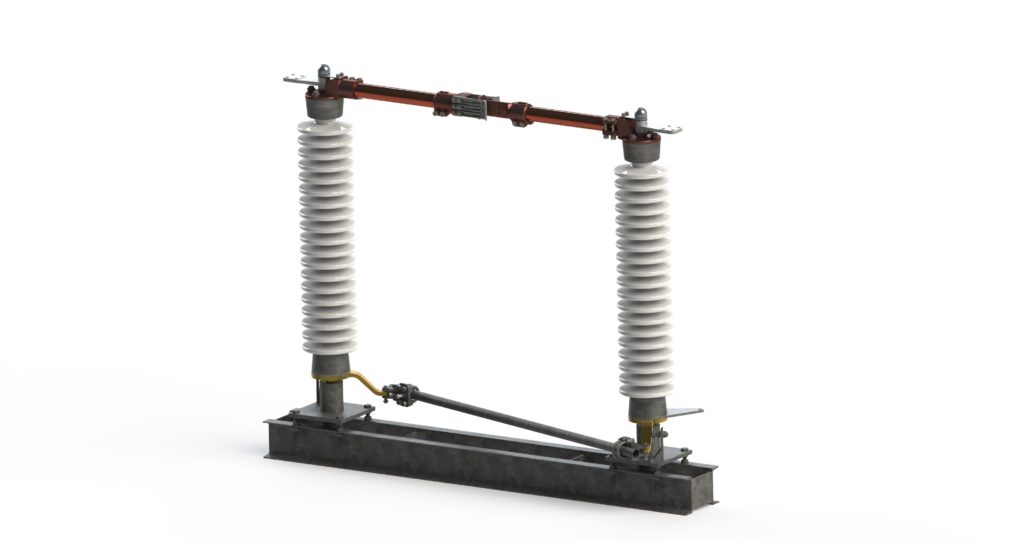

Center Break
A 3-phase, group operated, center break, air break switch for substations and transmission lines. Since 1961, components of this design have proven their adaptability to system requirements and the validity of the philosophy “simplicity means reliability.”
FEATURES
– Silver contact surfaces.
– Assembled and adjusted at the factory.
– Switch controls available for manual (swing handle or gear), or motor driven operation.
– Available with various current interrupting devices.
– Leveling nuts for uneven mounting surfaces.
Category:
Group Operated SwitchesSub-Category:
Center BreakBlade Style:
Copper Tubular BladeSwitch Style:
Center BreakVoltage:
46-230kVCurrent:
1200-1600ABIL:
250-750kVMaximum Voltage:
48.3-170kVMomentary Short Circuit:
61kASingle Pole Weight:
222-855 lbs
